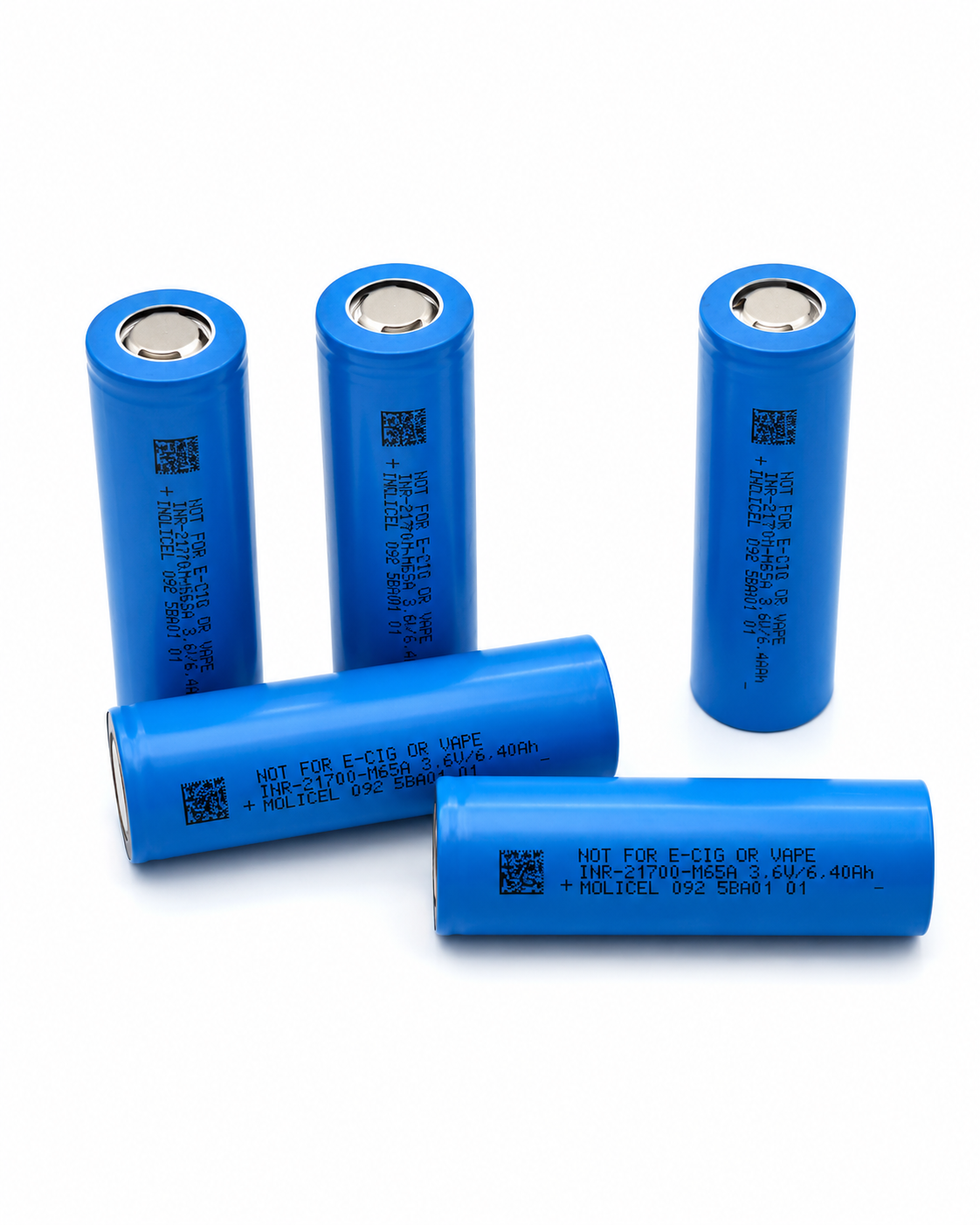

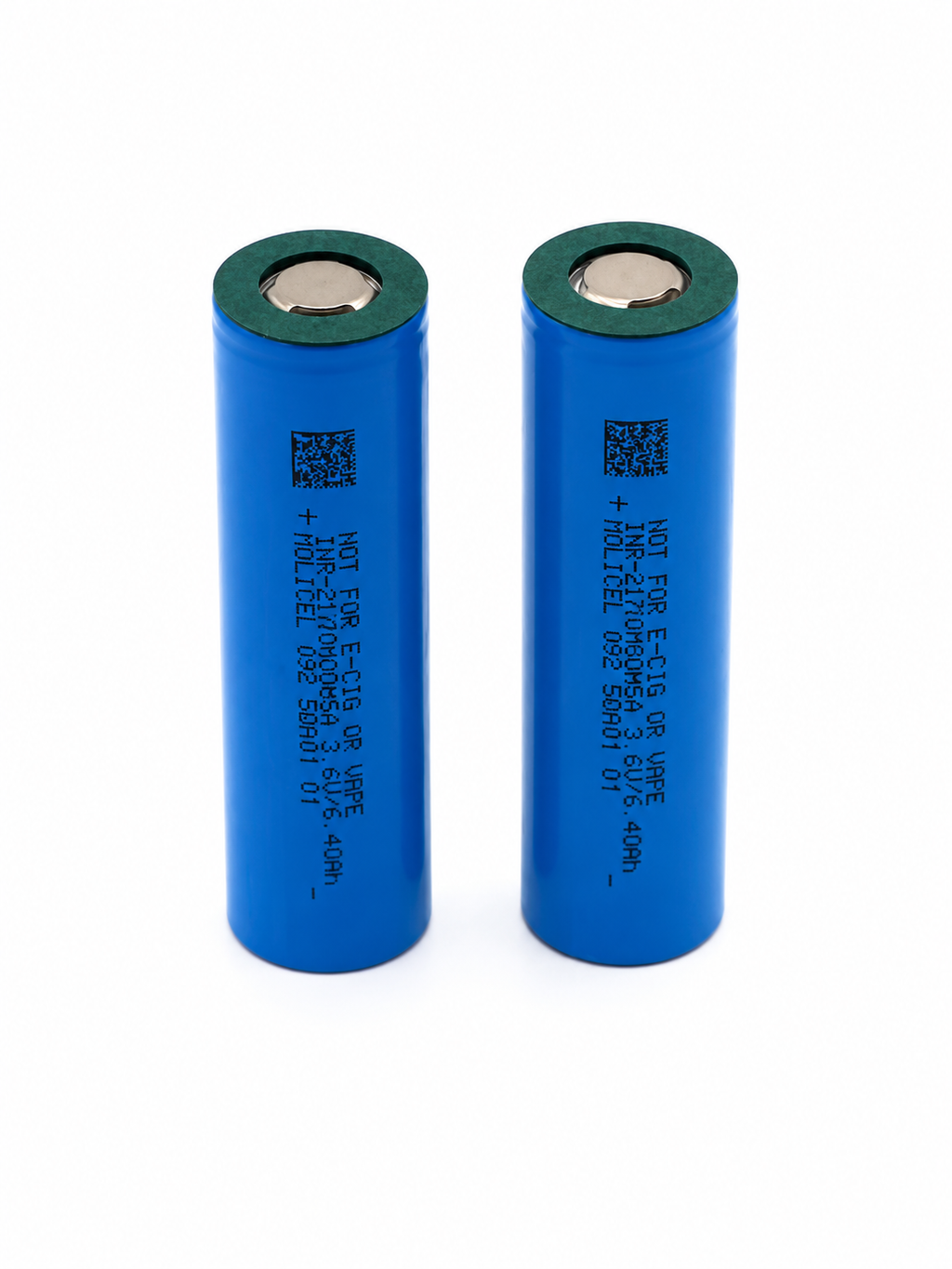

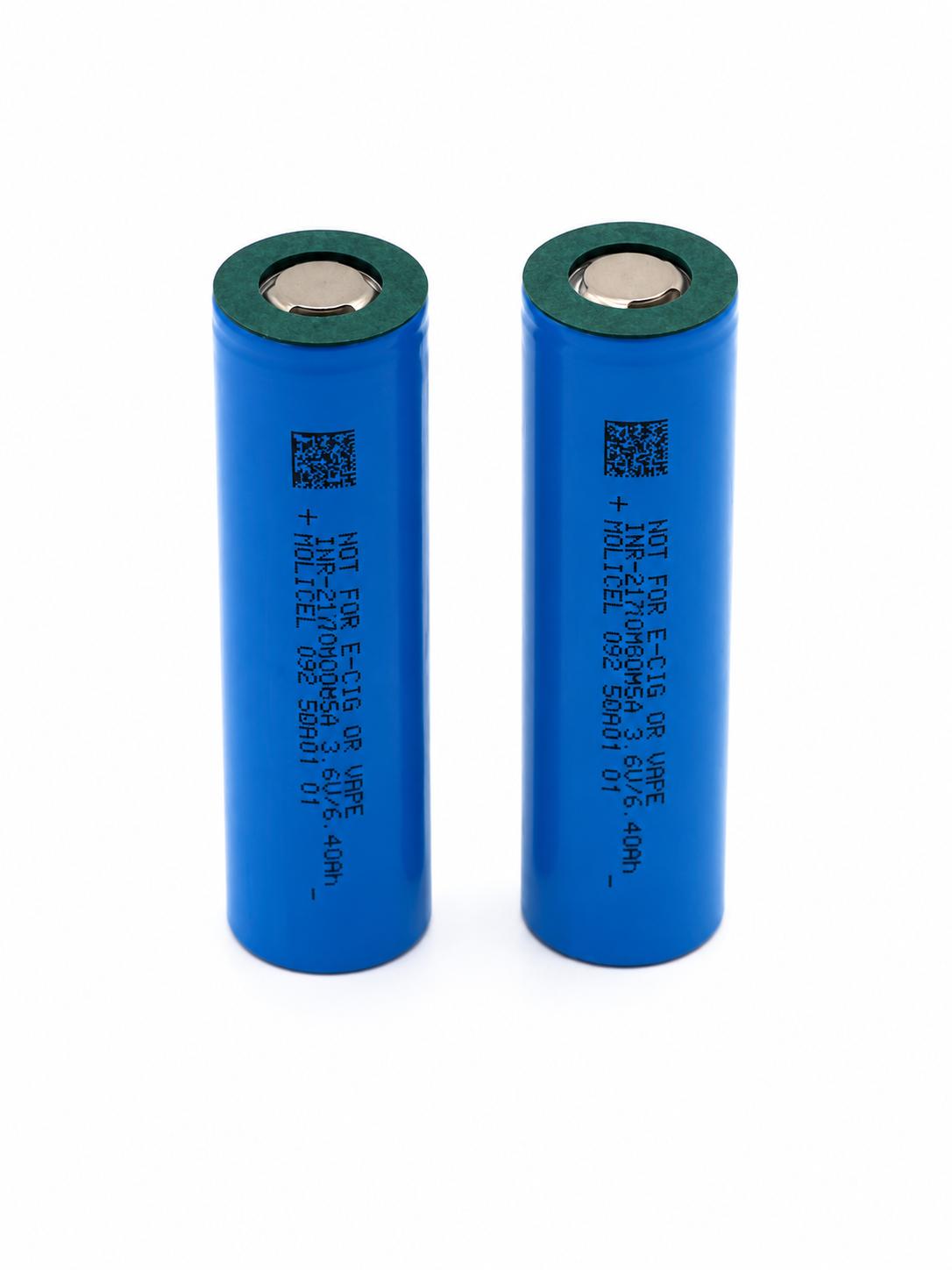

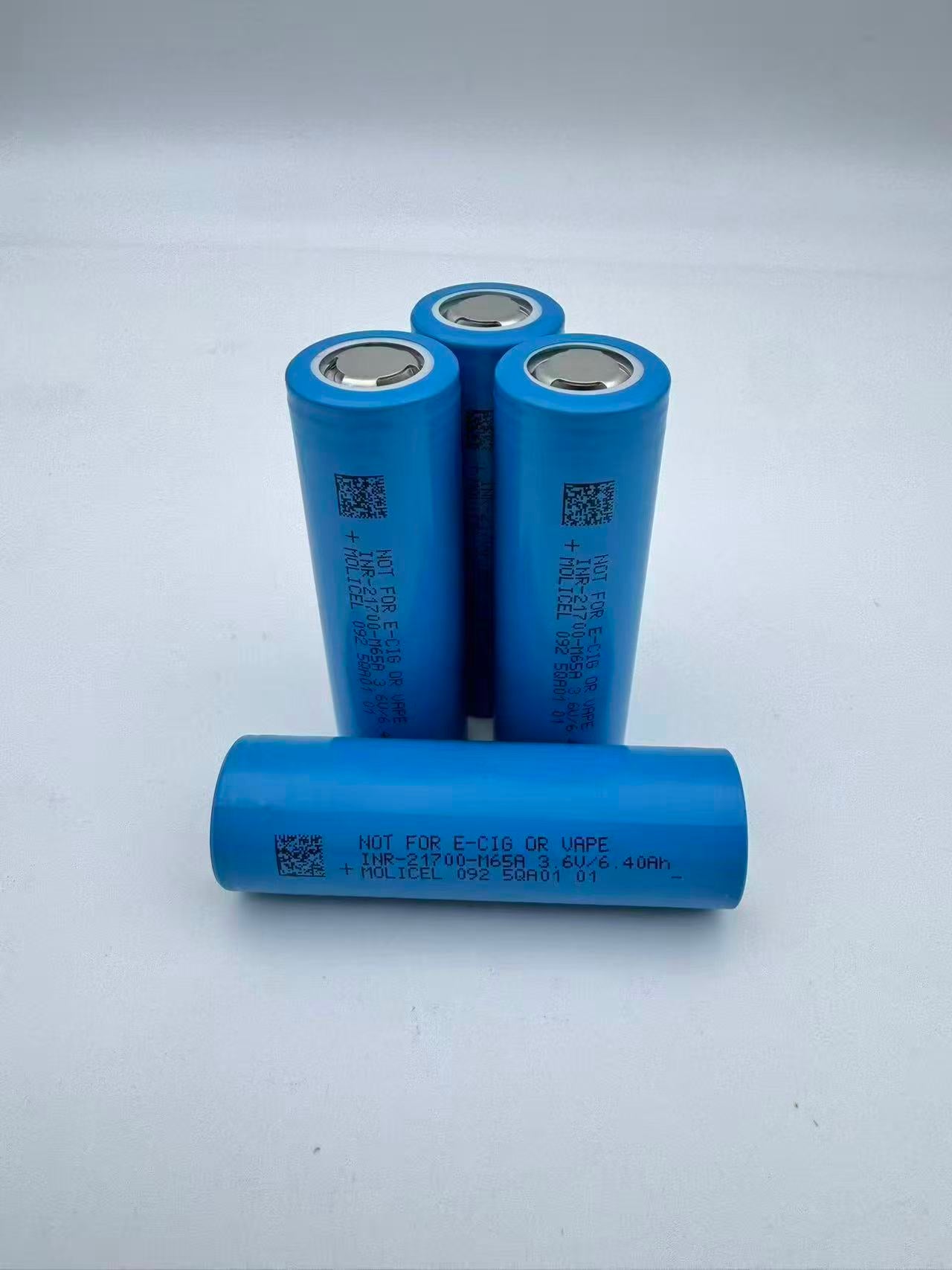

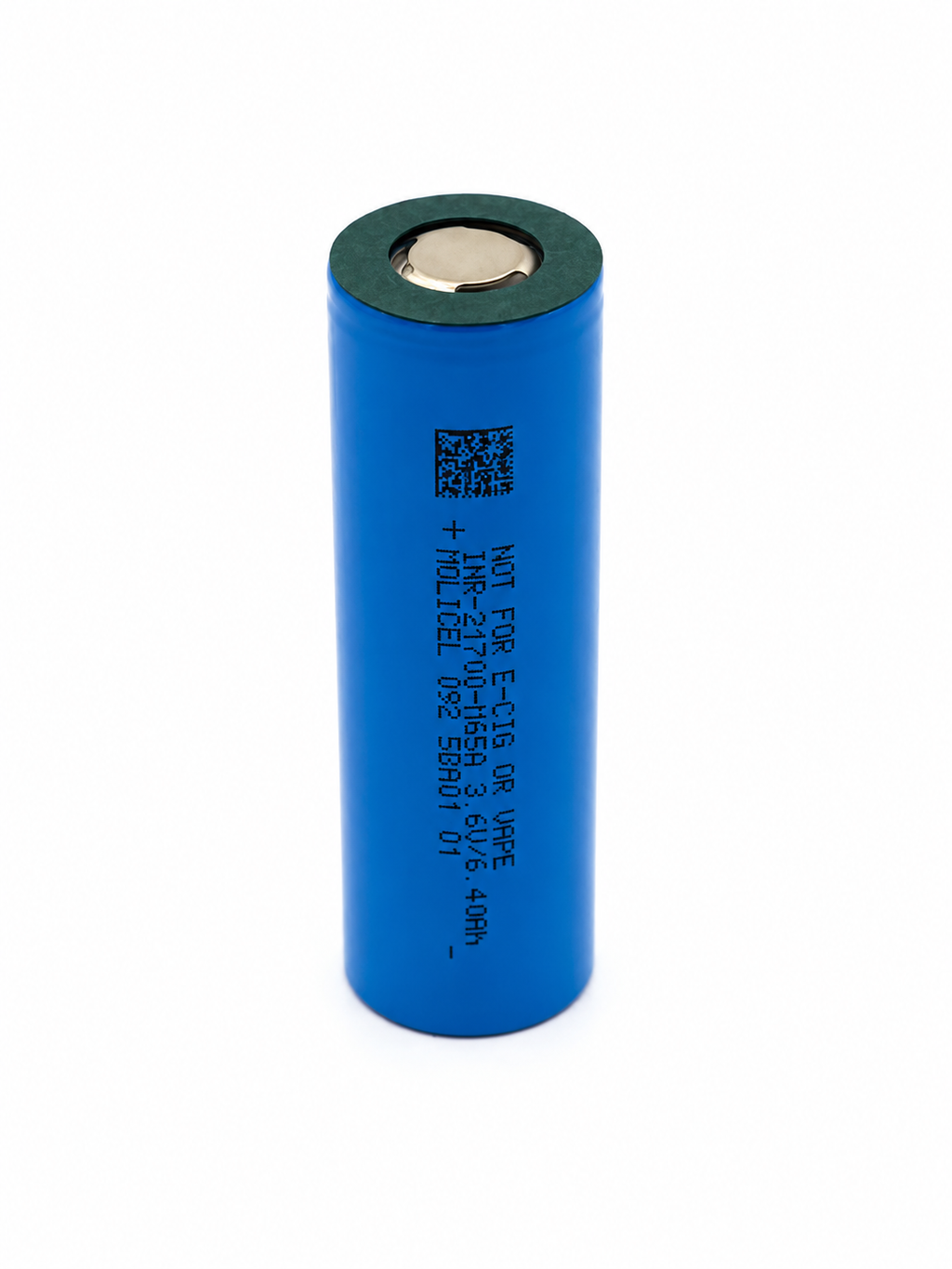

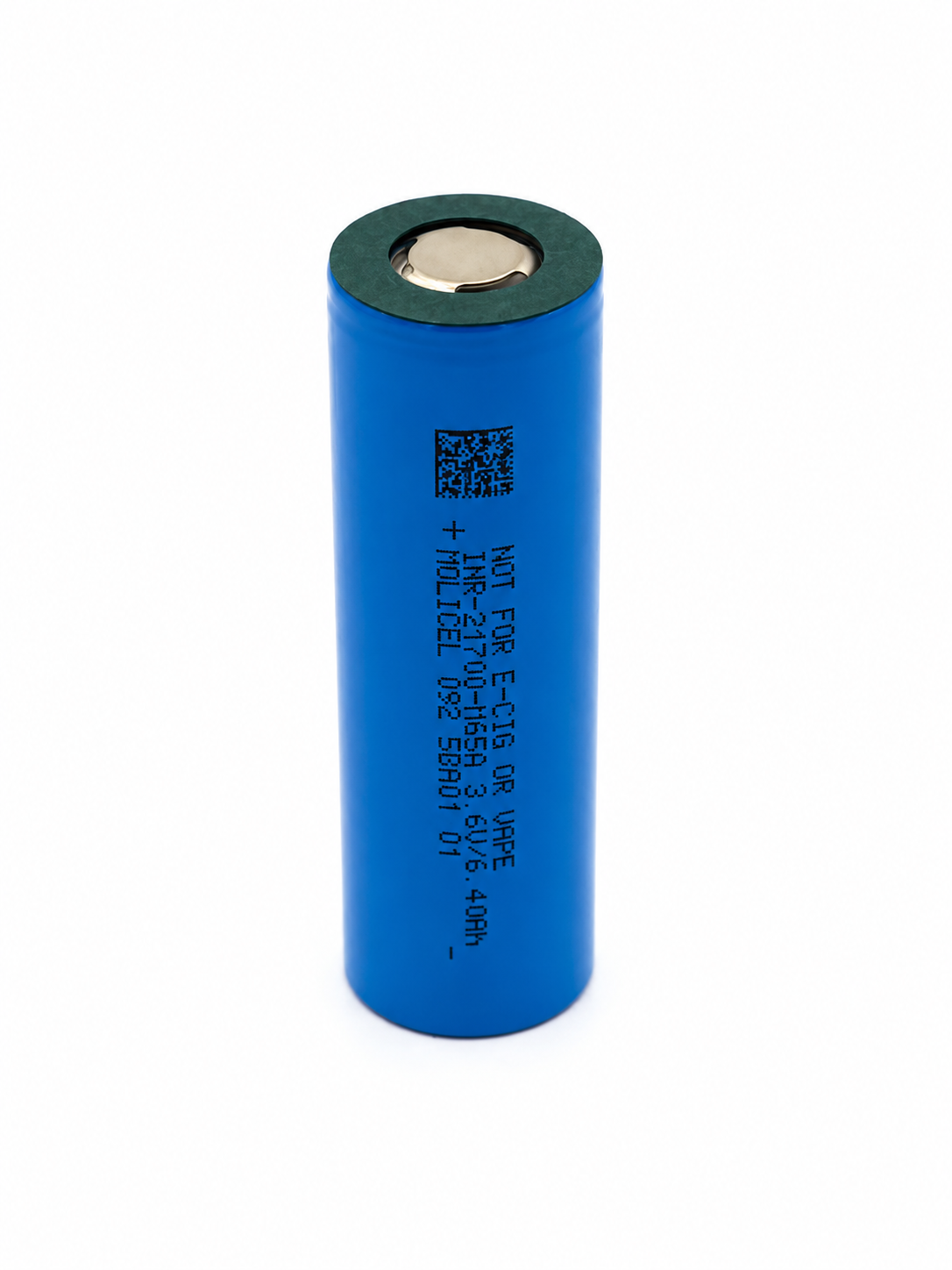

Molicel INR21700 M65A 6500mAh 21700 Battery (High Capacity)
Molicel INR21700 M65A 6500mAh 21700 Battery (High Capacity)
Molicel INR-21700-M65A Performance Highlights
The Molicel INR-21700-M65A is a premium high-capacity 21700 lithium-ion battery cell designed for applications that demand maximum energy density, long cycle life, and dependable power delivery. With a manufacturer-rated 6500mAh capacity and 26A continuous discharge rating, this cell is ideal for custom battery packs, light electric vehicles, robotics, energy storage systems, and professional power applications.
Key Features
- Ultra-High Capacity: 6500mAh / 23.4Wh manufacturer rating
- Stable Power Output: 26A continuous discharge capability
- High Energy Density: Approximately 322 Wh/kg
- Long Cycle Life: Engineered for 1,000+ charge cycles
- 21700 Form Factor: Optimized for modern battery pack designs
- Reliable Performance: Designed for consistent voltage under load
ULS Independent Test Results
United Lithium Solutions completed independent testing of the Molicel M65A using dedicated battery testing equipment. These results show how usable capacity changes under different discharge loads.
| Discharge Test | Measured Capacity | ULS Notes |
|---|---|---|
| 1 Amp Draw | 6.8Ah | Low-load range test result |
| 10 Amp Draw | 6.0Ah | Medium-load performance test |
| 26 Amp Draw | 5.1Ah | Maximum rated continuous discharge test |
Under low-current testing, the sample delivered approximately 6.8Ah. As discharge current increased, delivered capacity decreased as expected due to voltage sag and internal resistance under higher load conditions. This is normal behavior for lithium-ion cells and is why ULS tests cells under multiple load conditions.
Download ULS Test Files
Customers may download the available ULS test documentation below. These files include PDF reports and raw Excel data for review.
Technical Specifications
| Cell Type | Lithium-Ion INR |
| Model | Molicel INR-21700-M65A |
| Nominal Voltage | 3.6V |
| Typical Capacity | 6500mAh |
| Energy | 23.4Wh |
| Continuous Discharge | 26A |
| Standard Charge Current | 6.5A |
| Max Charge Voltage | 4.2V |
| Diameter | 21.55 mm |
| Height | 70.21 mm |
| Weight | Approx. 74.5 g |
Ideal Applications
- E-bike battery packs
- Light electric vehicles
- Custom lithium battery pack manufacturing
- Energy storage systems
- Robotics and automation systems
- Portable power solutions
ULS Testing Notice
Testing was performed by United Lithium Solutions using available testing equipment and procedures. Results may vary depending on temperature, charge method, discharge cutoff voltage, equipment calibration, cell condition, and production lot. This information is provided for customer reference and should not replace official manufacturer specifications.
Safety & Handling Notice
This battery cell is intended for use in professionally designed battery packs with appropriate battery management systems, protection circuitry, and safe handling procedures. Improper handling, charging, storage, or use can result in damage, fire, injury, or safety hazards.
